EXTRAORDINARY IMAGES TO EXPAND YOUR INSIGHT

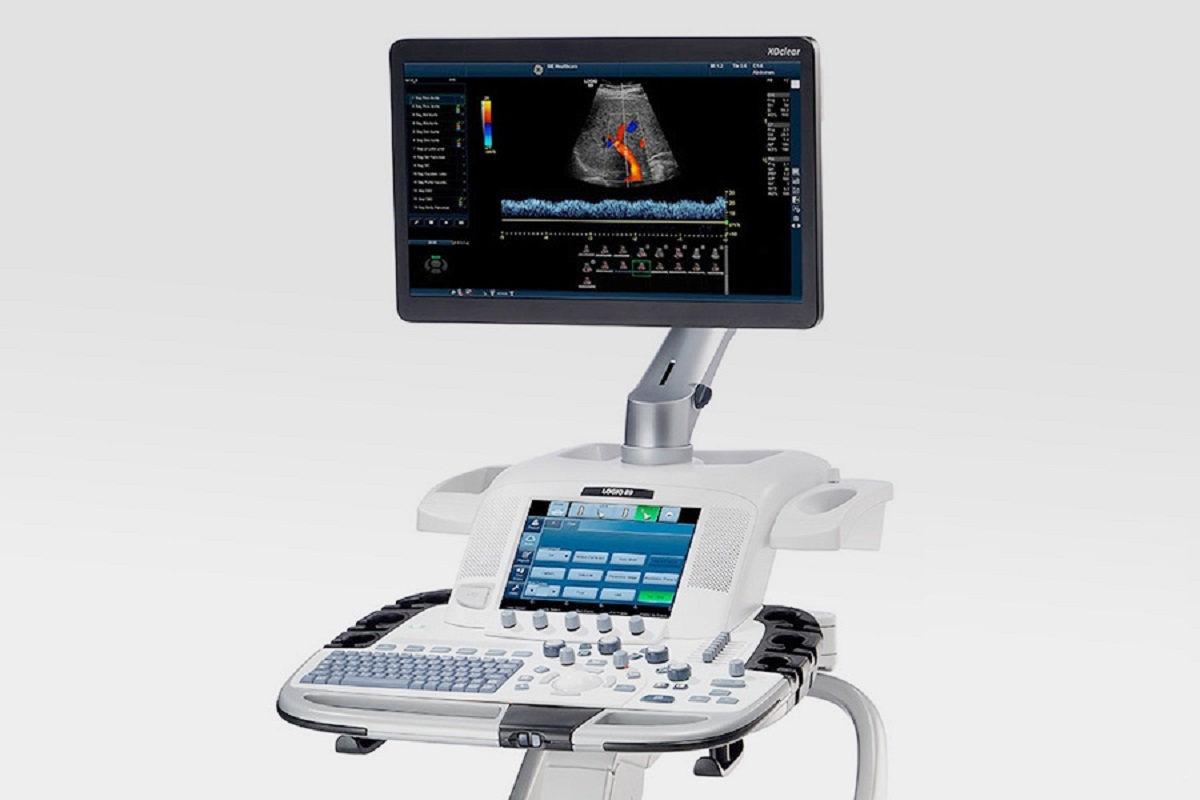

The sum of these imaging advances is enhanced speed and confidence. The LOGIQ E9 XDclear 2.0 system helps you quickly acquire the information you need, in both routine and difficult procedures, to guide decisions that enhance clinical confidence.AGILE ACOUSTIC ARCHITECTURE ? Automatically adapts to your patient?s body habitusThis latest version of GE?s proprietary technology uses dynamic models of the human body, based on clinical data, to help you acquire images on a broad spectrum of patients with minimal keystrokes.XDCLEAR PROCESSING ENGINE ? Actively working in the background to enhance image qualityThe enhanced bandwidth of the XDclear Processing Engine applies advanced imaging algorithms to create excellent images across all modes and applications.HIGH DEFINITION, WIDESCREEN DISPLAY ? A vivid landscape with 1.7 times the image informationThe advanced OLED (Organic Light-Emitting Diode) technology in our wide-screen monitor provides high contrast and deep blacks, extraordinarily vibrant colors, and excellent image quality even when viewing the monitor off-axis. In combination with enhancements to the XDclear Display, the image visualization landscape is more than 1.7 times larger than our earlier systemsB-FLOW IMAGING ? Leave the limitations of doppler behindBy enabling direct, real-time visualization of blood flow echoes, B-Flow? and B-Flow Color imaging enhances assessment of flow hemodynamics in a wide range of studies.The new XDclear 2.0 is the power behind the system?s leap forward in imaging performance. Our latest platform combines the resolution and penetration of XDclear technology with innovations to the system?s acoustic architecture, processing engine, and display technologies. The result is a turbo-charged imaging chain that enables you to:

• CLEARLY DIFFERENTIATE FINE DETAILS – 22% more contrast
• FOCUS WITH HIGH FIDELITY, NEAR AND FAR – 99% improved spatial resolution
• SEE MORE INFORMATION AT A GLANCE – 170% more image information

HIGH-PERFORMANCE PROBES FOR ROUTINE AND SPECIALTY APPLICATIONS

The LOGIQ E9 XDclear 2.0 system offers a wide selection of probes from our E-Series and XDclear probe lines to support a broad range of applications. XDclear is GE?s highest performing probe technology, with advances in acoustic engineering that deliver ultra-wide bandwidth, increased penetration, and high definition resolution. Our probe selection includes:

• C1-6-D/C1-6VN-D ? This XDclear workhorse probe enables outstanding resolution at depth and delivers 4cm+ penetration. The C1-6VN probe has the sensor in the probe
• C3-10-D ? This XDclear convex probe is well-suited for neonatal, pediatric, and vascular applications
• C2-9-D ? This XDclear convex probe is well-suited for pediatric and OB/GYN applications
• C2-7-D/C2-7VN-D ? This microconvex probe has a wide FOV that reduces blind spots, particularly in intercostal areas
• ML6-15-D ? This matrix array linear probe provides high resolution imaging of fine-detail structures for small parts, neonatal, pediatric, musculoskeletal, and peripheral vascular applications
• 9L-D ? This linear probe supports specialty imaging with a large footprint and excellent depth of field
• L3-9i-D ? With its low profile, this T-shaped probe is easy to maneuver during surgical procedures

EASY WORKFLOW TO KEEP YOUR DAY ON TRACK

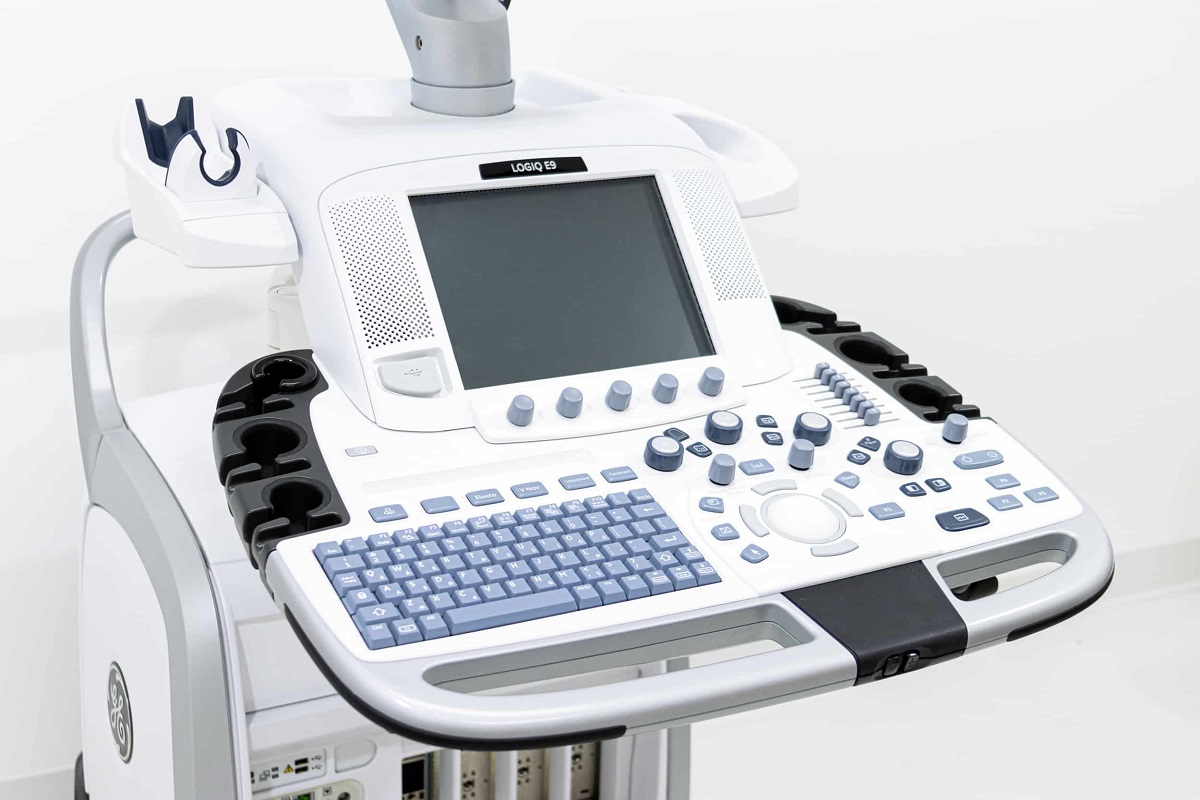

ERGONOMIC DESIGN ? exceptional mobility and ease of useStreamlined to be 20% smaller and 100 pounds lighter than our previous premium systems, it?s easy to move and position in crowded rooms. The intuitive user interface with easy-to-reach controls, adjustable floating keyboard, and articulating monitor help speed procedures.COMPARE ASSISTANT ? see the past, in real timeCompare Assistant enables clinicians to easily view a prior study ? ultrasound or other modalities ? and current images together in real time via a split screen on the monitor, helping to enhance confidence and exam efficiency.SCAN ASSISTANT ? work smartThe system?s customizable automation assists users at each step of an ultrasound exam, helping to reduce keystrokes and exam times. One study demonstrated a 79% reduction in keystrokes and 54% reduction in exam time versus not using Scan AssistantPRODUCTIVITY PACKAGES ? save time on high-volume examsSpecialized software helps increase the efficiency of breast and thyroid exams by enabling the user to label, measure, and describe anatomy quickly and confidently ? plus generate DICOM? SR compatible summaries.

EXPERT TOOLS FOR COMPLEX QUESTIONS

Expert practitioners need specialized tools. The LOGIQ E9 XDclear 2.0 system was designed for departments that handle complex cases and require advanced technologies to address challenging clinical questions. Our portfolio of specialty tools includes:VOLUME NAVIGATION ? See where you?re goingThe LOGIQ E9 XDclear 2.0 system offers sophisticated navigational tools including:? Fusion Imaging ? Merge real-time ultrasound with a volume DICOM? dataset (CT, MR, PET/CT, CBCT, SPECT and 3D CEUS) to help increase precision and accuracy of image-guided interventional procedures? CT and MR Active Trackers ? One-click auto-registration enhances accuracy and ease in managing patient motion, breathing and transmitter movements? Needle Tip Tracking ? Provides a live display of needle tip position and orientation to help users navigate interventional procedures? 3D GPS Markers ? Highly useful when planning ablation and interventional proceduresGE LOGIQ E9 XDclear 2.0 – Diagnostic Ultrasound System at GE Official WebSite

Product Files

Instruction Manual – SpecificationsDeclaration of Conformity

Compatible Probes

ConvexC1-6-DC1-6VN-DC2-9-DC2-9VN-DC3-10-DM6C-DC1-5-DC2-6b-DC2-7-DC2-7VN-D3CRF-D3CRFEndocavityIC5-9-DLinear9L-D11L-DML6-15-DL8-18i-DL3-9i-DPhased ArrayS1-5-DS1-5M5S-D6S-DS4-10-DS4-10RT3D/4DRAB6-DRAB2-5-DRAB4-8-DRNA5-9-DRIC5-9-DRSP6-16-DIndependent CW DopplerP2DP6DTEE Cardio6Tc-RS
